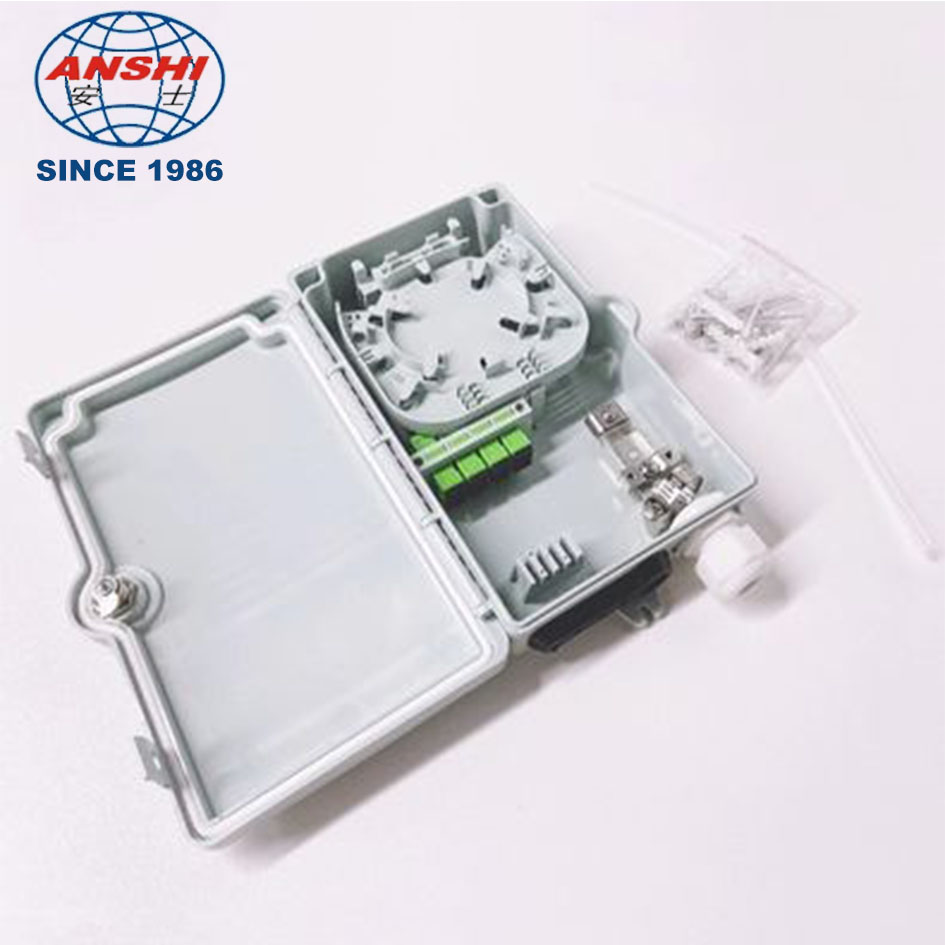

    ANSHI 4 Ports Fiber Access Termination Box FTTH Outdoor Fiber Optic Terminal Box

    Ask Lasest Price
    Brand Name : ANSHI
    Model Number : AS-ODF-FDB-4B
    Certification : ISO9001, SGS
    Price : Negotiable
    Delivery Time : 10000pcs/week
    • Product Details
    • Company Profile

    ANSHI 4 Ports Fiber Access Termination Box FTTH Outdoor Fiber Optic Terminal Box

    FTTH Waterproof 4 Ports SC/APC Fibre Optics Terminal Distribution Box
    Product Description

    Descriptions:

    - Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
    - The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
    - AS-ODF-FDB-4B is designed for outdoor using with 1 port for round cable and 4 ports for FTTH drop cable.
    - Its waterproof grade can match IP65.


    Feature:

    - Light weight, small size, save cost.

    - Up to 4 FTTH drops.

    - Suitable for wall and pole mountable.

    - User familiar industry interface, using high impact plastic.
    - Can accommodate 1X4 optical fiber splitter.

    - 4 pcs of adapter port is fit with SC simplex adapter or LC duplex adapter.
    - 1 inlet capacity for outdoor cable and 4 outlet ports for ftth drop cable.
    - Space saving: Double-layer design for easier installation and maintenances:
    - Lower layer for splitters and over length fiber storage.
    - Upper layer for splicing, cross-connecting and fiber distribution.
    - Cable fixing units provided for fixing the outdoor optical cable.
    - Protection Level: IP65
    - Accommodates both cable glands as well as tie-wraps
    - Lock provided for extra security

    Application

    - Passive Fiber Optic System;

    - Widely used in FTTX systems;
    - Telecom project
    - Fiber optic termination, indoor and outdoor application;
    - CATV networks

    - LAN

    - WAN

    - Metro

    - Data communications networks

    - Telecommunication networks;
    - FTTD (Fiber To The Desk) interfaces.


    ItemAS-ODF-FDB-4B
    Dimension190X140X90mm
    Net Weight0.35kg
    Splice tray1pcs
    Adapter ports4 port
    SplitterMini Tube PLC Splitter 1X4
    Splitter no.max. 1pcs
    ColorGray
    Working Temperature-25°C ~ 60°C (5 to 95% relative humidity)
