Ask Lasest Price | |
Brand Name : | ANSHI |
Model Number : | AS-KEY-D10F |
Certification : | SGS, ISO9001 |
Price : | Negotiable |
Supply Ability : | 15000 Pieces per Week |

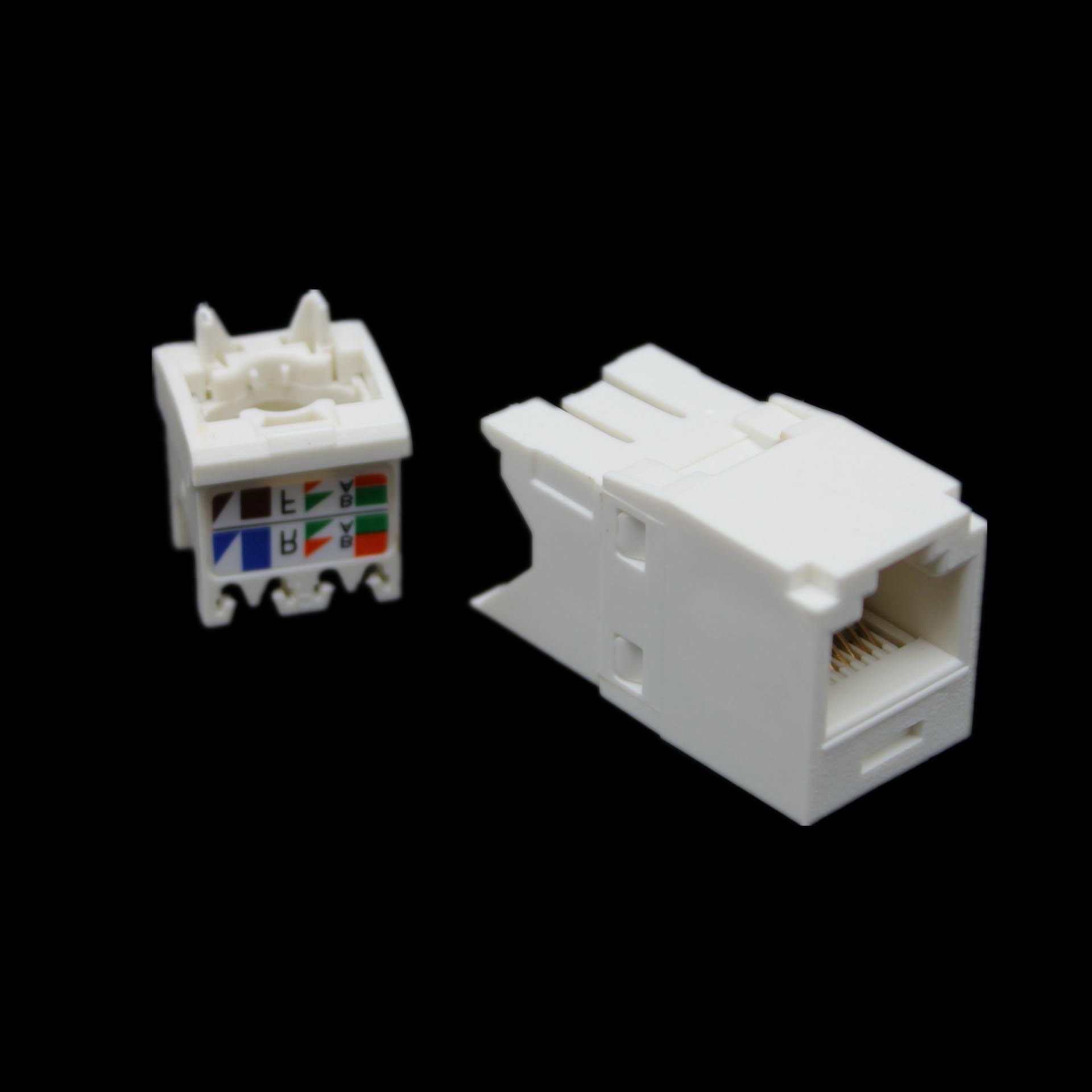

Cat6/Cat5e modular Jack utp rj45 keystone jack RJ45 CAT5E CAT6 Network Coupler network keystone jack UTP unshielded
Feature:
RJ45 8P8C 50u" JACK
TERMINATING 4 PAIRS, 22~24 AWG CABLE
UNIVERSAL LABELS COLOR-CODED FOR T568A AND T568B WIRING SCHEMES
FITTING 1U 24 & 48 PORT HIGH-DENSITY KEYSTONE PANEL
ETL VERIFIED UNSHIELDED C6 EIA/TIA PERMANENT LINK
Electrical performance
1. Insulation resistance: not less than 500m Ω
2. Pressure resistance: DC1000V (AC750V) 50-60Hz for 1 minute
3. Contact resistance: not more than 20m Ω Mechanical performance
Service life: insertion and extraction times not less than 750
times Terminal card wire repetition times not less than 80 times
work environment
1. Working temperature: -10 ℃~60 ℃
2. Working temperature: 10~90
![]() |
