    AS-OLT-03A GPON OLT Supports 1 /128 Split Ratio Access 2048 ONU Users At The Same Time

    AS-OLT-03A GPON OLT Supports 1:128 split ratio,can access 2048 ONU users at the same time


    Product Overview

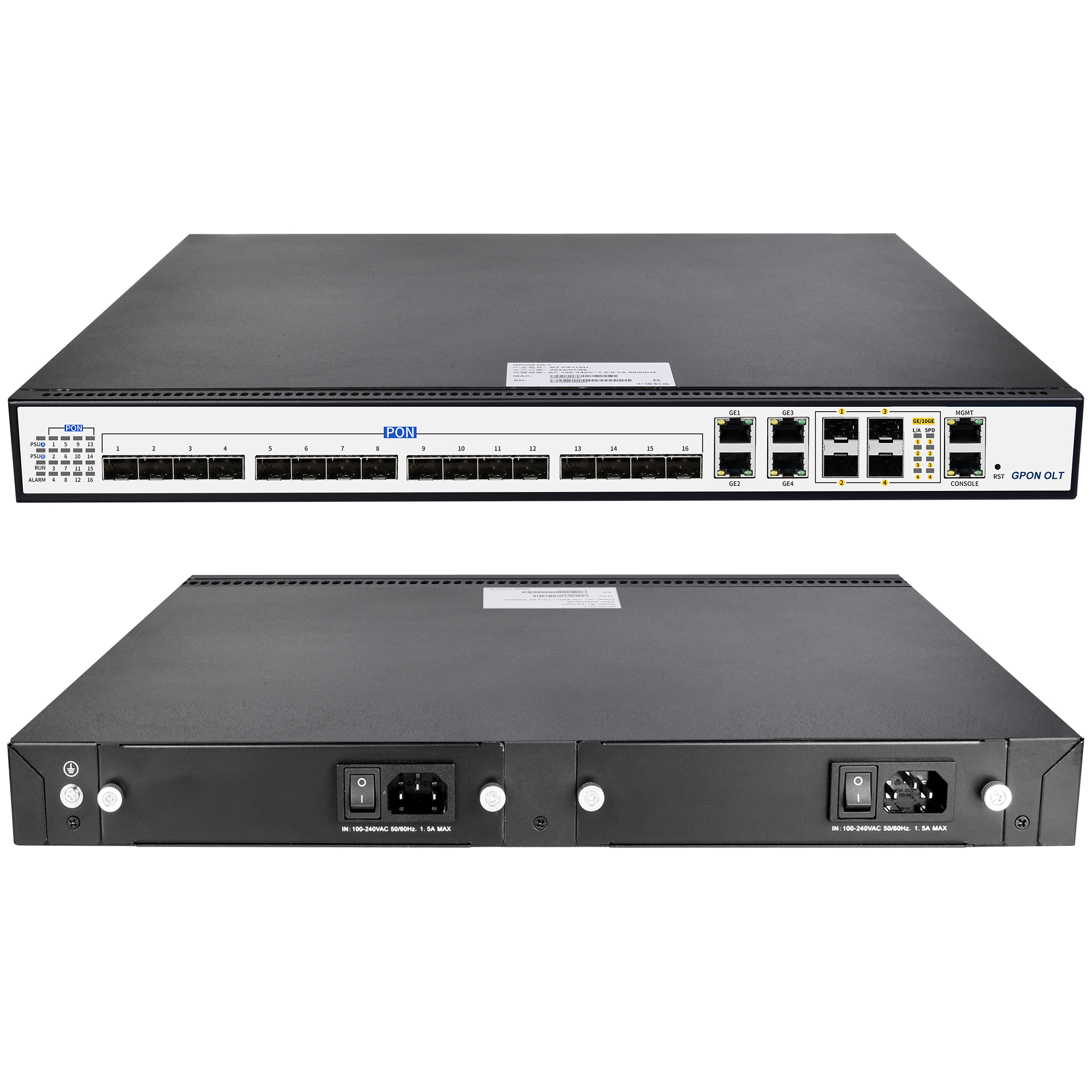

    AS-OLT-03A is GPON OLT series product, 19-inch 1U height rack-mounted, featuring small size, convenience and flflexibility, easy deployment, and high performance. Easy installation and maintenance,saving space.
    AS-OLT-03A GPON OLT provides 16 standard EPON PON ports ; 4 uplink GE Ethernet RJ45 ports; 4*10GE SFP+ optical ports.Supports 1:128 split ratio,can access 2048 ONU users at the same time. Support difffferent types of ONU hybrid networking, suitable for triple play,Video network, corporate LAN, and Internet of Things scenarios. Provide perfect, intelligent, powerful, advanced and professional solutions for FTTH/FTTB/FTTO projects.

    Product Specifications

    GPON interface
    16 x GPON (1.25/2.5 Gbps)
    10GE Ethernet
    4 x 10GE SFP+
    1GE Ethernet
    4 x RJ-45
    GPON
    ITU-TG.984.x standard
    Console
    RJ-45 EIA/TIA-232 Console management port
    MGMT
    1000BASE-T out-band management port
    Switching Capacity
    148Gbps
    Spaging ratio
    1: 128
    Maximum ONU quantity
    4096 GEM port-ids, 1024 T-CONT, 128 ONT
    Power Adaptor
    AC Input::100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V(optional)
    Redundancy Design
    Pluggable double power supply, double AC, double DC and AC+DC
    Consumption
    <84 W
    Storage
    temperature -10 to 70°C, rel. humidity 10‒90% (non-condensing)
    Operation
    temperature 0 to 45°C, rel. humidity 10‒90% (non-condensing)
    Dimensions
    440mm×400mm× 44mm(W * D *H)
    Weight
    < 6.5KG
