    AS-OLT-05A GPON OLT Access 512 ONU Users At The Same Time

    Ask Lasest Price
    Brand Name : ANSHI
    Model Number : AS-OLT-05A
    Certification : ISO9001, SGS
    Price : Negotiable
    • Product Details
    • Company Profile

    AS-OLT-05A GPON OLT Access 512 ONU Users At The Same Time

    AS-OLT-05A GPON OLT Supports 1:64 split ratio,can access 512 ONU users at the same time


    Product Overview

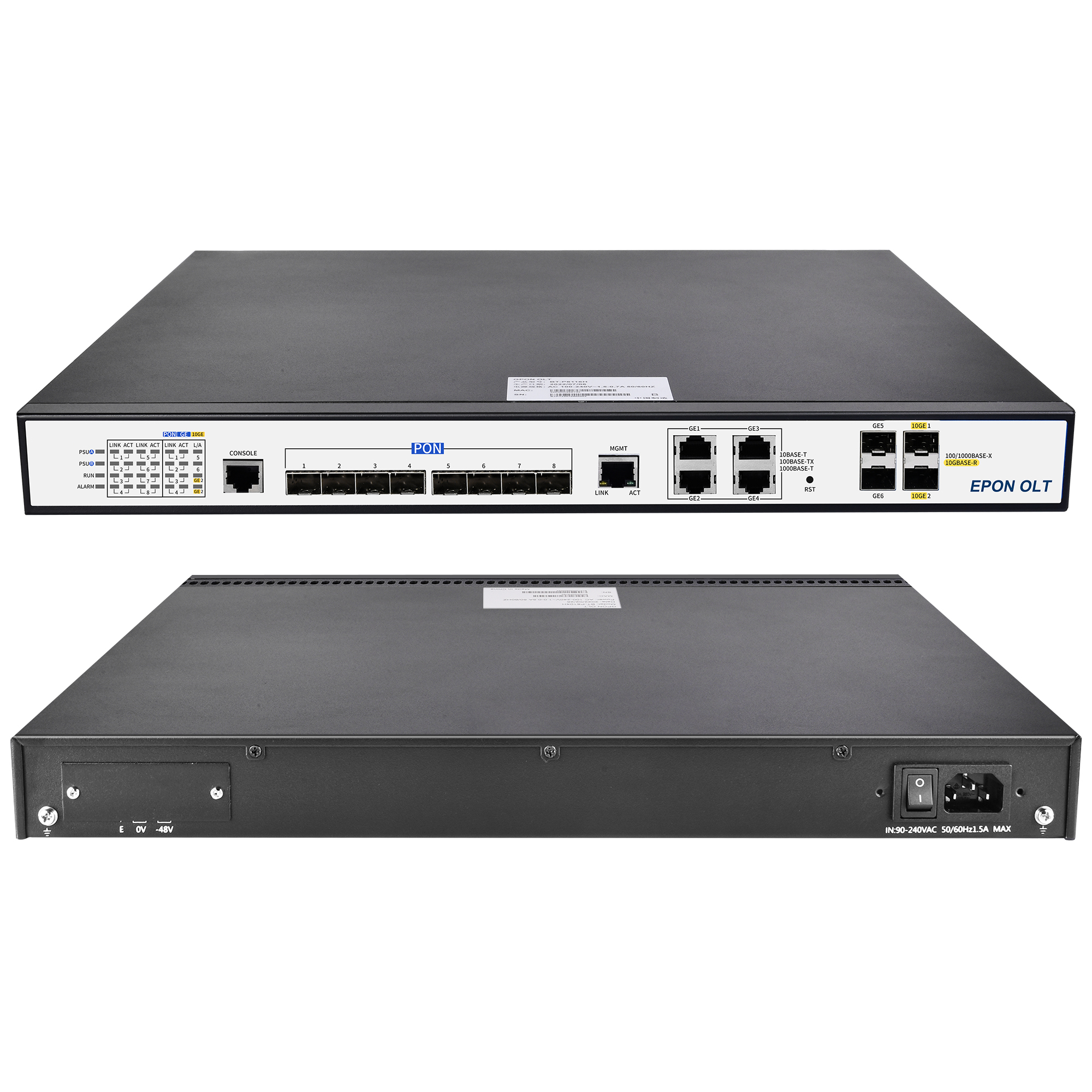

    AS-OLT-05A is EPON OLT series product, 19-inch 1U height rack-mounted, featuring small size, convenience and flflexibility, easy deployment, and high performance. Easy installation and maintenance, saving space.
    AS-OLT-05A EPON OLT provides 8 standard EPON PON ports ; 4 * Uplink GE ETH ports, 4 * Uplink GE SFP ports and 4* Uplink SFP+ ports.Supports 1:64 split ratio,can access 512 ONU users at the same time. Support difffferent types of ONU hybrid networking, suitable for triple play,Video network, corporate LAN, and Internet of Things scenarios. Provide perfect, intelligent, powerful, advanced and professional solutions for FTTH/FTTB/FTTO projects.

    Product Specifications

    GPON interface
    8 x EPON (1.25/1.25 Gbps)
    Uplink Optical Interface
    2 x GE
    Uplink Ethernet Interface
    4 x RJ-45
    EPON
    IEEE 802.3ah EPON
    Console
    RJ45 EIA/TIA-232 Console management port
    MGMT
    1000BASE-T out-band management port
    Switching Capacity
    64Gbps
    Package transmit rate
    (IPv4/IPv6)
    125Mpps
    Spaging ratio
    1: 64
    Maximum ONU quantity
    512 ONT
    Power Adaptor
    AC Input: 100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V
    Redundancy Design
    Pluggable double power supply, double AC, double DC and AC+DC
    Consumption
    <56 W
    Storage
    temperature -10 to 70°C, rel. humidity 10‒90% (non-condensing)
    Operation
    temperature 0 to 45°C, rel. humidity 10‒90% (non-condensing)
    Dimensions
    442mm×360mm× 44mm(W * D *H)
    Weight
    <5.5KG
