    Gold Plating ABS Toolless Keystone Cat5e RJ45 Punch Down Jack

    Ask Lasest Price
    Brand Name : ANSHI
    Model Number : XL-4010C
    Certification : SGS, ISO9001, DAS
    Price : Negotiable
    Supply Ability : 15000 Pieces per Week
    • Product Details
    • Company Profile

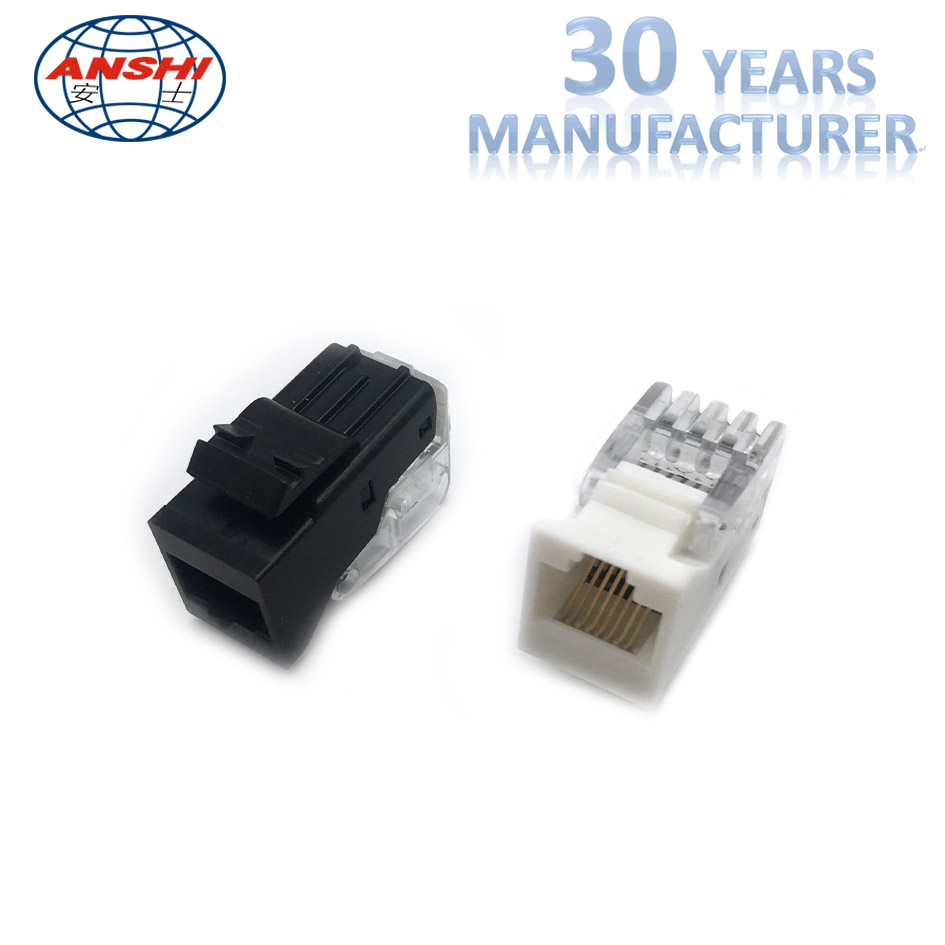

    Gold Plating ABS Toolless Keystone Cat5e RJ45 Punch Down Jack

    Ivory Cat5e RJ45 Punch Down Jack / ABS Toolless Keystone Jack Gold Plating


    1) Contact resistance: <2.5m Ohm
    2) Contact resistance of linker and lead: <2.5m Ohm
    3) Insulation resistance: >1,000M Ohm
    4) Withstand test voltage: DC 1,000V
    5) Times of repetitive use: >=750
    6) Designed and manufactured in accordance with ISO / IEC11801 standards
    7) Design exceeds normal requirements
    8) Colored component combinations for convenience of identification and network management


    Specifications:
    Meet TIA/EIA-568-A and TIA/EIA-568-B Category 3 requirements.
    Meet TIA/EIA TSB-40
    Meet ISO/IEC Generic Cabling Standard 11801
    Meet CENELEC Generic Cabling Standard EN50173
    Angle: 90 Degree
    Termination: 110 Type
    Electrical:
    According to UL 1863
    Current rating: 1.5 Amp Max.
    Voltage rating: 150 Volts
    Contact resistance: 20 m-ohm
    Insulation Resistance: 500M-ohm
    Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
    Materials:
    Housing: PC UL94V-0
    IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
    PCB: FR4 1.6mm(0.04") thickness, 2 layers
    Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.


    Features:


    1) Contact resistance: <2.5m Ohm

    2) Contact resistance of linker and lead: <2.5m Ohm

    3) Insulation resistance: >1,000M Ohm

    4) Withstand test voltage: DC 1,000V

    5) Times of repetitive use: >=750

    6) Designed and manufactured in accordance with ISO / IEC11801

    standards

    7) Design exceeds normal requirements

    8) Colored component combinations for convenience of identification

    and network management

    9) Many other message modules available for wiring arrangements

    10) Compatible with AMP keystone

    11) Colors available: white, yellow, ivory, red, black, blue


    The RJ45 Cat5e keystone jack module is used for network communication in telecommunication field,together with patch panel,faceplate,patch cord,etc.

    all kinds of keystone jack and relation products for network communication we can manufacture:

    RJ45 Cat5e keystone jack, 110 IDC type

    RJ45 keystone jack,dual IDC type,Degree 180

    Cat.6 RJ45 keystone jack.,dual IDC type

    faceplate,patch panel(UTP,FTP),patch cord,cross connection block,network cabinet,network distribution frame,network distribution box, Cat5e communication cable,Cat3 communication cable.


    Specification:

    ElectrinicVoltage Rating :125 VAC RMS
    Current Rating : 1.5AMP
    Contact Resistance:110 Milliohs MAX.
    Insulation Resistance:1 000 megohms MIN 500 VDC
    Dielectric Strength :750 VAC RMS 60Hz ,1 MIN
    EnvironmentStorge: -40~ 85°c
    Operation: 0~70°c
    MachanicalHousing Material: PBT-UL90V-0
    Panel Fram: Carbon Steel, Powder Coating in black color
    Contact Material: PC-UL90V-0
    Contact: Phosphor Bronze with Nickel Plating
    RJ45 Jack:IFE:750 times MIN.
    IDC Life :200 times MIN.
    Wire:AWG 24-26
    Tia Cat.5e Perm Link Test: Worst Pair NEXT Margin ≥3dB
    Retentiveness of insertion structure:50N 60±5s
