    G652D 2 Ports Ftth Fiber Optic Termination Box With SC LC Adapter

    Ask Lasest Price
    Brand Name : ANSHI
    Model Number : AS-ODF-MBH-F
    Certification : CE,ROHS,ISO 9001
    Price : Negotiable
    Supply Ability : 5000 Pieces per Week
    • Product Details
    • Company Profile

    G652D 2 Ports Ftth Fiber Optic Termination Box With SC LC Adapter

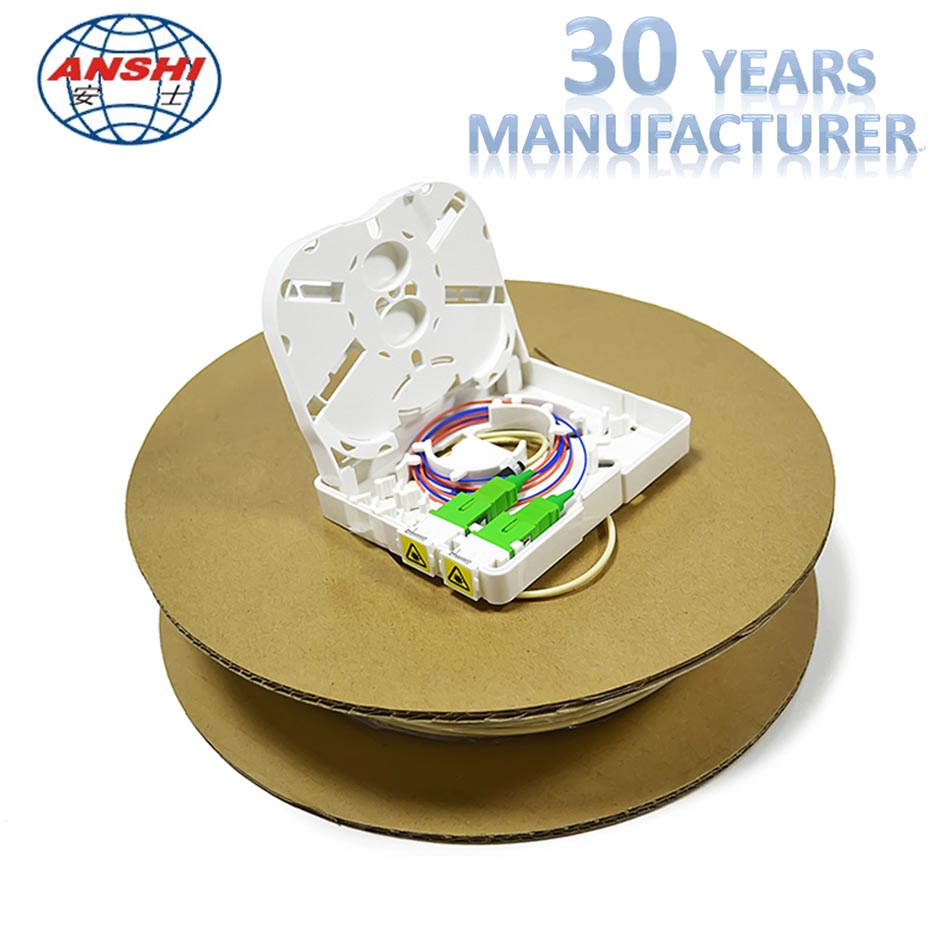

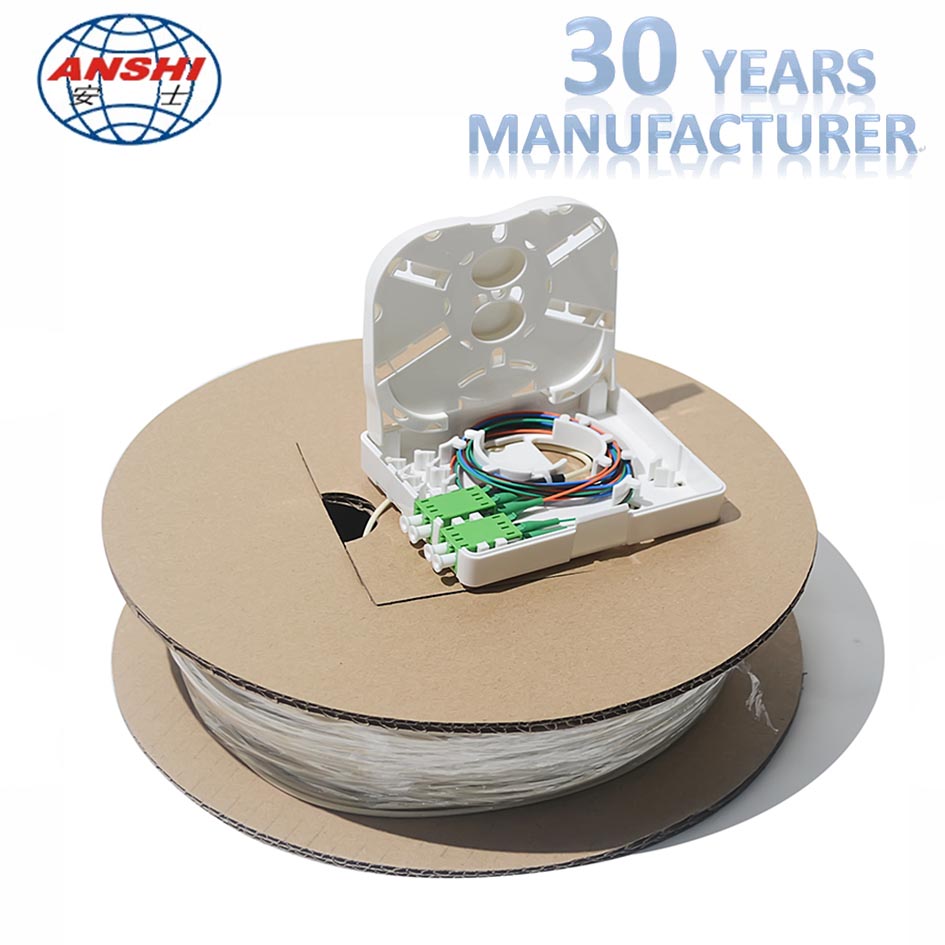

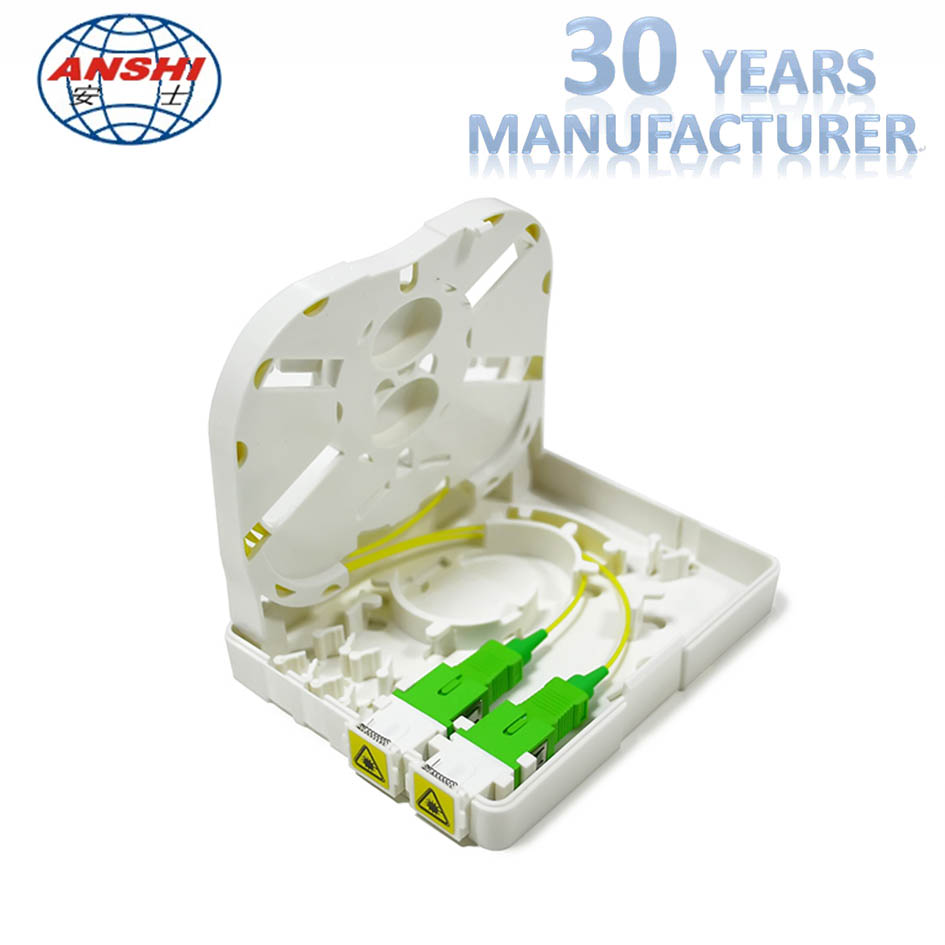

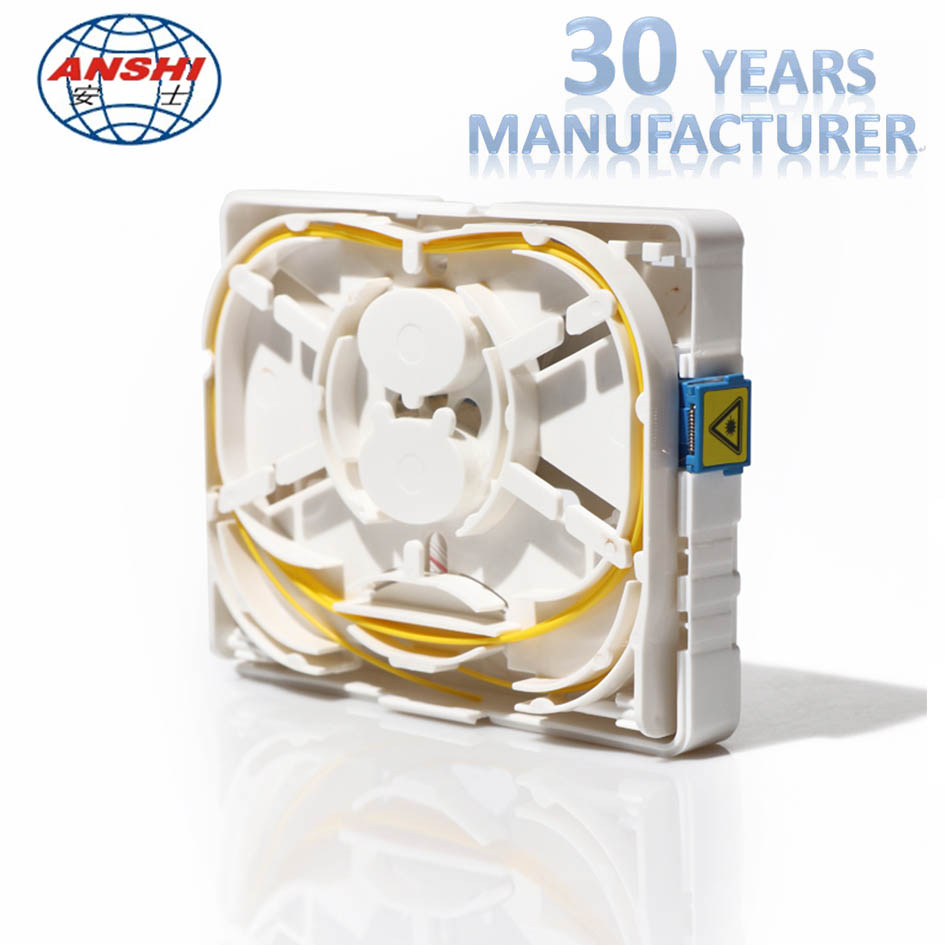

    Fiber Optic 2 ports FTTH mini fiber optic terminal box with SC LC Adapter plastic ftth fiber optic box


    Features:

    ItemTechnical data
    Application3.0*2.0mm drop cable or indoor cable
    Fiber DiameterG652D or G657A
    Tight Cladding diameter250um & 900um
    Mode of applicationSingle mode & Multimode
    Tensile strength>50N
    End-use temperature-40~85 degree
    AdapterSC Simplex or LC Duplex
    Insertion Lossless than 0.2dB (1310nm & 1550nm)
    Output2

    1.Dust-proof design with IP-66 protection level.

    2.Integrated with splice cassette and cable management rods.

    3.Manage fibers in a reasonable fiber radius condition.

    4.Easy to maintain and extend the capacity.

    5.Suitable for the fusion splice or machanical splice.

    6.Embedded type surface,easy for installation and removal

    7.2port cable entrance for patch cable.


    Specification:

    Scope of application:3.0*2.0mm drop cable or indoor cable

    Fiber Cladding diameter:125um(G652&G657)

    Fiber diameter:250um&900um

    Fiber Type:SM&MM

    Tensil Strength:More than 50N

    Operation Temperature:-40-+85

    Connecting Adapter:SC&LC

    Insertion Loss:Less than 0.2dB

    Return Loss:More than 50dB(UPC),More than 60dB(UPC)
