    KRONE 237A 10 Pair Disconnection Module with Flame Retardant UL94-V0, Silver-plated Phosphor Bronze Contacts and Modular Design

    Ask Lasest Price
    Brand Name : ANSHI
    Model Number : XL-011
    Certification : ISO9001, CNACL, SGS, DAS
    Price : Negotiable
    Supply Ability : 10000 pcs per week
    • Product Details
    • Company Profile

    KRONE 237A 10 Pair Disconnection Module with Flame Retardant UL94-V0, Silver-plated Phosphor Bronze Contacts and Modular Design

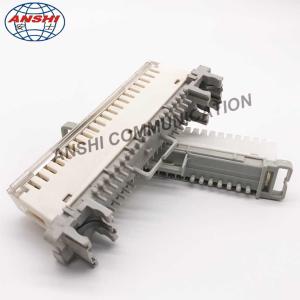

    KRONE 237A Module 10 Pair Disconnection Module
    Product Overview

    The KRONE 237A Module is a 10-pair disconnection module designed for telecommunications and network applications, featuring modular construction and high-performance specifications.

    Key Features
    • Temperature range: -5°C to 40°C
    • Relative humidity: <85% (+30°C)
    • Atmospheric pressure: 70-106KPa
    • Material: Stainless steel and cuprum with cuprum gold plating over nickel
    • Anti-burn performance: PPT (UL94V-0) or anti-burn ABS (UL94V-0)
    • Modular design with elegant appearance and high endurance
    • Pulling-out force: 25N minimum
    • Intermediate resistance between reed terminators: ≤7mΩ
    • Intermediate resistance: ≤3mΩ under standard conditions
    • Performance impedance: 120Ω (balanced)
    • Work rate: 2Mb/s
    • Insulation resistance: 1,000MΩ / 500V (DC)
    • Resistance to voltage: No breakdown or arc for 1 minute under 1kV (DC)
    • Crosstalk ratio: ≥60dB (50kHz - 210MHz)
    • Plug-in loss: ≤0.4dB (50kHz - 210MHz)
    • Back wave loss: ≥18dB (50kHz - 210MHz)
    • Life cycle: 200 cycles
    Technical Characteristics

    The disconnection type CT module enables testing of electrical parameters on both exchange and distribution sides by inserting a test plug without disconnecting jumper wires or cables from the termination module.

    Module housing is constructed with imported GE PBT and ABS (UL94V-0) materials, using only new raw materials rather than recycled content to ensure optimal performance and reliability.

    Technical Specifications
    Mechanical PerformanceSpecifications
    Insertion Force40-75N
    Pull Out ForceF≥25N (axial), F≥7.5N (radial)
    IDC Life200 times minimum (20-26 AWG solid wire)
    Copper Conductor DiameterΦ0.4-Φ0.8mm
    Environment CharacteristicsSpecifications
    Storage Temperature-40°C to 70°C
    Operating Temperature10°C to 60°C
    Relative Humidity95%, non-condensing
    Electrical PerformanceSpecifications
    Insulation Resistance1000 MΩ minimum
    Contact Resistance7 mΩ maximum
    Dielectric IntensityAC 1000 Vrms 50Hz/60Hz in 60s
    KRONE 237A Module technical diagram and specifications
