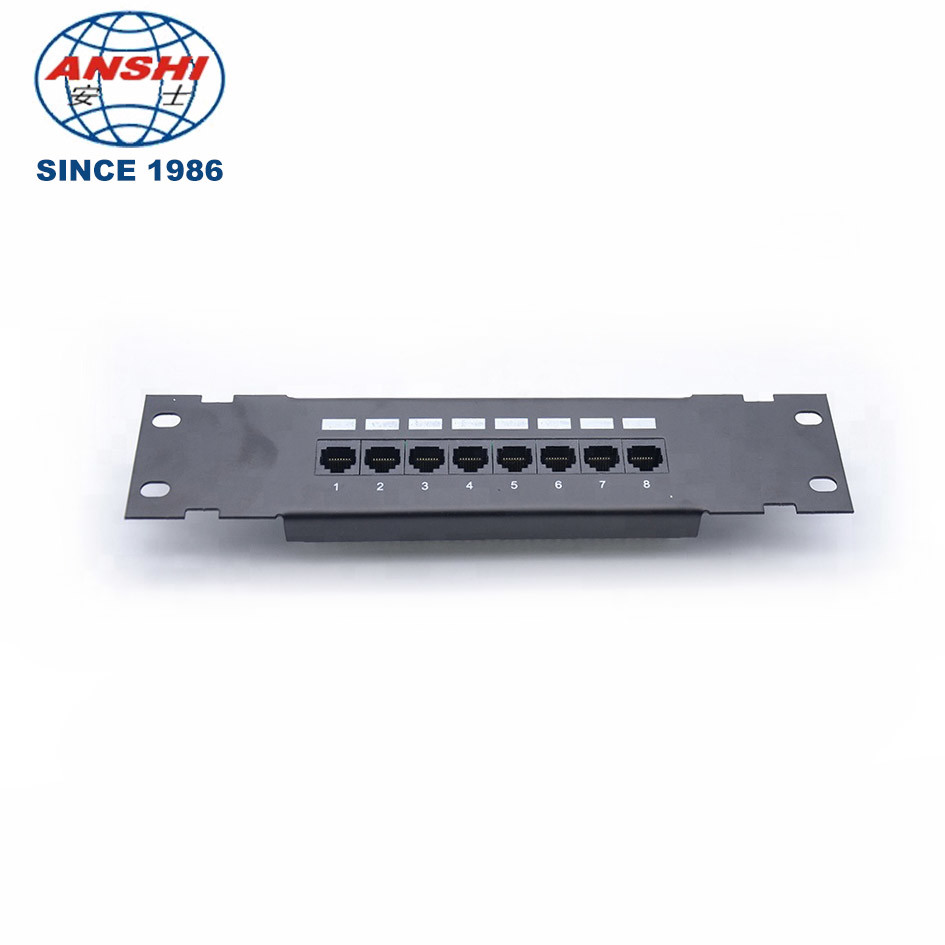

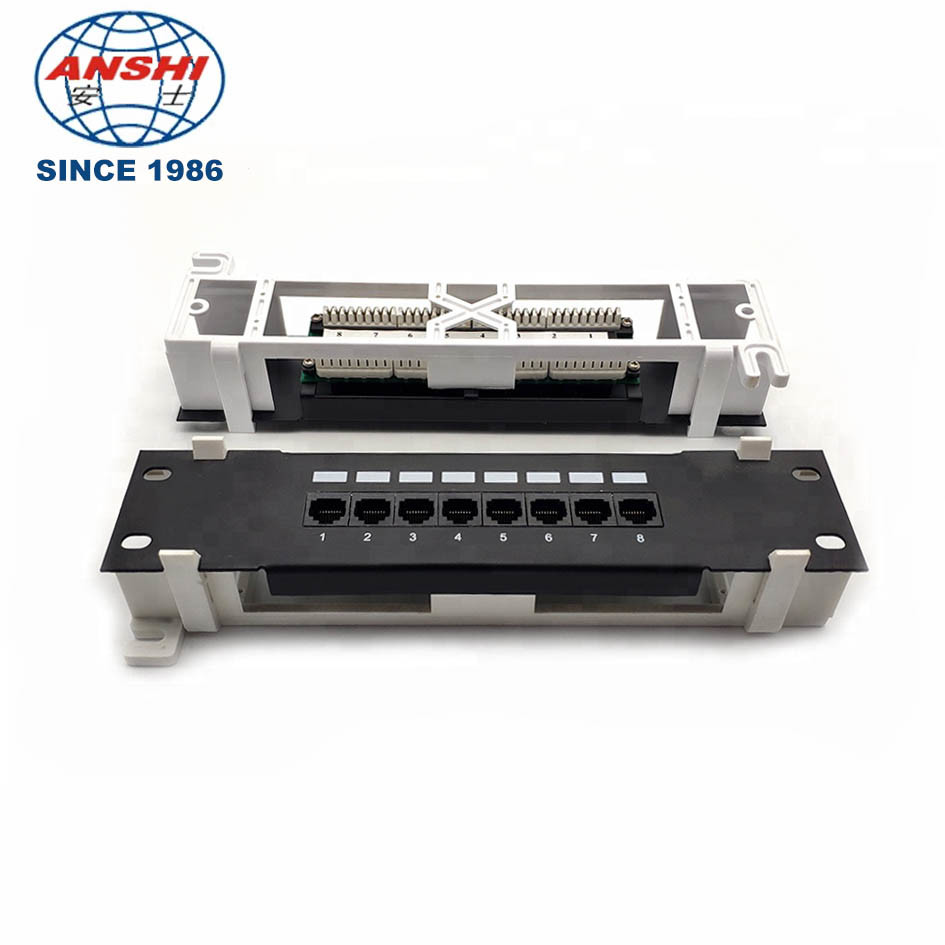

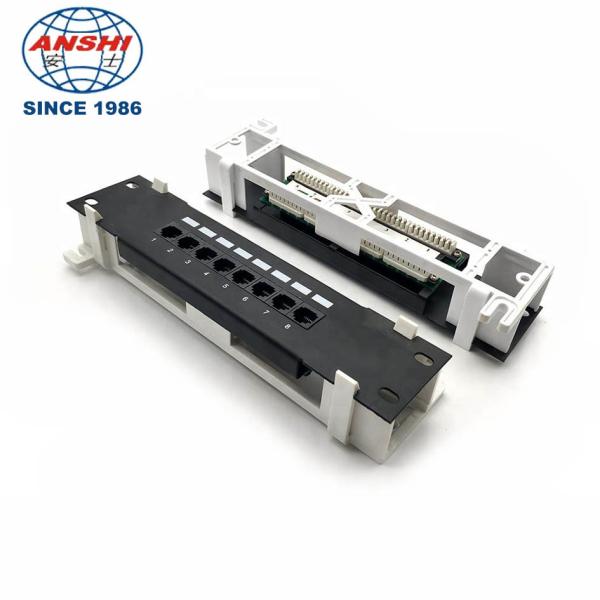

1U 10'' Inch 8 Port wall moun UTP Patch Panel 110 IDC Type, can OEM

Full Technical Specifications

1)Toolless and cabinet designed
2) Label and inlaid marks for convenience of identification and network management
2)Highly resistance and inflaming retarding material, Grade UL94-0
3)Connection strap to adopt gold plate,alloy of Cu and Be,IDC to use the alloy of Cu and P

1) Firm and easy installation reducing the installation and operation cost.
2) Transmission stability.
3)Module part is fitted with shield, protecting inner 1DC contact from irregular working in rugged environment
4)Meet or exceed the current T568A and T568B standard

Mechanical property
Times of repetitive use:≥800
Termipoint life:≥200
Insulation diameter:0.7mm-1.4mm(1.6mm)
Temperature interval:-40°C-70°C(storing)
-10°C-60°C(installation)
-10°C-60°C(working)
Application standard:
ISO/IEC11801:2002
IEC 60603-7-4(edition:1.02003-01-10)
IEC 60603-7-2(edition:1.02003-01-10)
EIA/TIA568B.2-1(2002de-embedded)

Over 30 Years of Experience
Cixi Anshi Communication Equipment has been specializing in jacks and connectors since 1986. We offer you more than 200 specifications in 10 categories, including fiber-optic distribution trays and splice closures, drop wire connectors, Cat5E and Cat6E patch cables, internet connectors, and distribution boxes. About 60% of our products are exported to Southeast Asia, Europe, the Middle East, Africa and the US.

One New Product Every Month
Our six R&D staff members use advanced testing equipment from the US. They use computer software such as AutoCAD, Pro/E, 3D MAX and Photoshop. They also develop one new product every month to meet your requirements.

OEM/ODM Orders Accepted
Now, we have more than 100 staff members and 20 of them are technicians at our 4,800 sqm factory. We have two production lines dedicated to processing your OEM/ODM orders, thus, we produce $200,000 worth of components every month.

Three Sections to Control Quality
Following ISO 9001:2000 guidelines, our quality control department includes QC, QE and QA sections. QA staff members check the quality of all raw and processed materials, while QE personnel are responsible for the related documents. QC staff members handle your requests and quality statistics, and make the corresponding improvements. We use materials from South Korea, the US and Taiwan to ensure quality. You can have confidence in ordering our CE-approved products.
