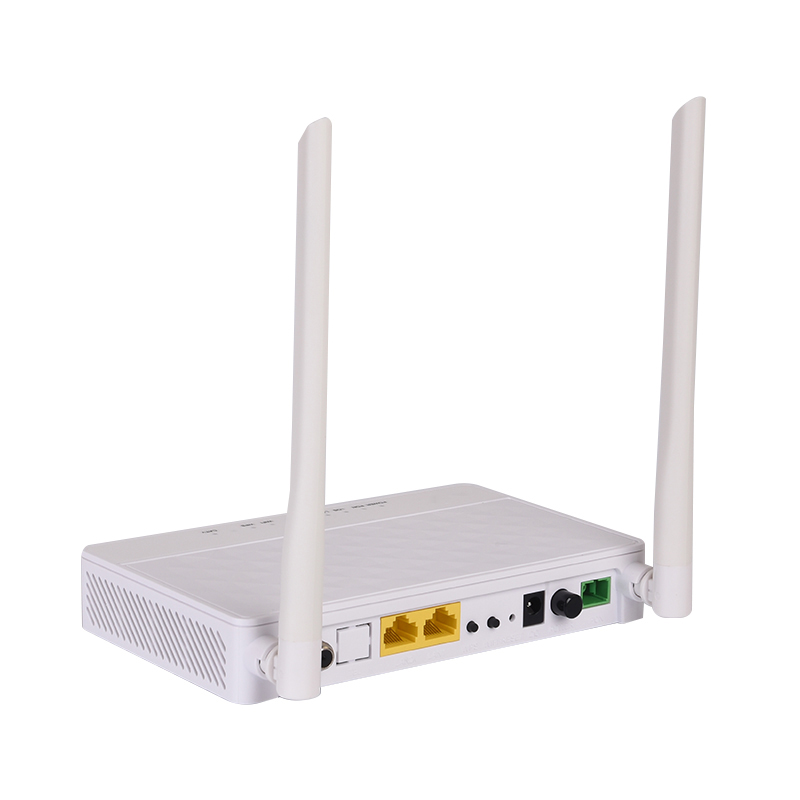

AS-ONU9 1GE+1FE+CATV+2.4G WIFI
Product Overview
AS-ONU9 model ONU is a user terminal device independently developed in
line with such industrial background.The device has built-in
two-layer switching function and three-layer routing function. With
compact structure and small appearance, it is a kind of FTTH
optical network unit with high performance and low power
consumption, which is very suitable for the application
requirements of various data services in FTTH networking scenarios
of various operators.AS-ONU9 is an XPON product that can be adapted
to EPON and GPON networks without replacing equipment and firmware.
Features
♦ Support EPON/GPON mode and switch mode automatically
♦ GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
♦ GPON:8 T-CONTs,32 GEM Ports
♦ Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and
maintenance
♦ Layer 3 Home Gateway/CPE features with Hardware NAT, support
Multiple WAN, Route/Bridge mode,
♦ Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth
Control, Spanning Tree, etc
♦ Support PPPoE/ Static IP/ DHCP
♦ Support IPv4, IPv6 and IPv4/IPv6
♦ Support firewall level Settings, support based on URL/MAC/ IP/
address frame filtering
♦ Support multicast IGMP v2 proxy/ snooping, support MLD proxy/
snooping
♦ Qos supports PQ, WRR, and CAR queue scheduling
♦ Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna,
support multiple SSID Settings,
♦ Support DDSN, ALG, DMZ and UPNP
♦ Support CATV interface for Video Service
Highlights
♦ Compatible with 95% Third-party OLTs (Including
Huawei/ZTE/Fiberhome/BT-PON and so on)
♦ Spport EPON/GPON mode and switch mode automatically
♦ Support Route PPPoE/DHCP/Static IP and Bridge mode
♦ Support ONU auto-discovery/Link detection/remote upgrade of
software
♦ Support IPv4/IPv6 dual mode
♦ Support Firewall function and IGMP multicast feature
♦ Support LAN IP and DHCP Server confifiguration
♦ Support Port Forwarding and Loop-Detect
