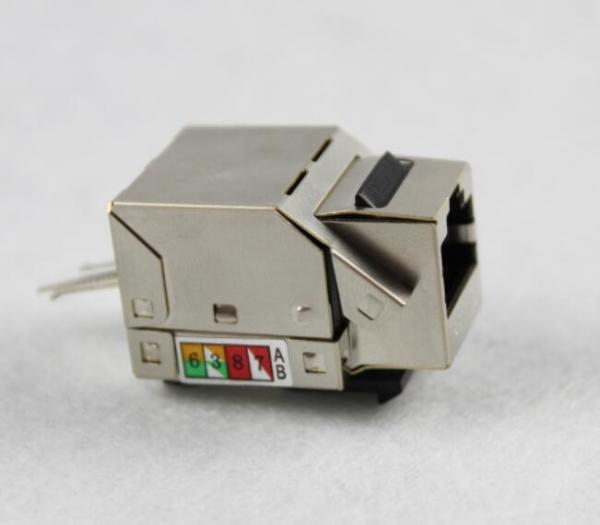

    90 Degree Cat6 Cat5e Keystone Jack Rj45 Stp Shielded In Metallic Color

    Ask Lasest Price
    Brand Name : ANSHI
    Model Number : AS-KEY-FN5E
    Certification : SGS, ISO9001, DAS
    Price : Negotiable
    Supply Ability : 15000 Pieces per Week
    • Product Details
    • Company Profile

    90 Degree Cat6 Cat5e Keystone Jack Rj45 Stp Shielded In Metallic Color

    Cat6A RJ45 Keystone Jack STP Shielded Metal Keystone Jack


    Factory Advantages:

    • OEM & ODM Services
    • 25 years warranty
    • 100 % Tester, 100% Pass Fluke Test
    • Shortest Leading Time

    RJ45 FTP Shielded Tooless CAT6A Keystone Jack 180 Degree


    Electrical----CAT6A Keystone jack 180 degree ----
    1. Contact Resistance:20M OHMS MAX
    2. Insulation Resistance:500M OHMS MIN@500V DC
    3. Withstand Voltage:DC1000V AC700V RMS 60Hz, 1MIN
    4.CAT.5E Permament Link:Conform to ANSI/TIA/EIA 568B.2-10
    Environmental:---- CAT6A Keystone jack 180 degree----
    1. Storage:__40 ° to 70 °
    2. Operation:__10 ° to 80 °
    Mechanical:---- CAT6A Keystone jack 180 degree ----
    1. Shield Material:Zinc Alloy
    2. IDC Material:PC UL94V-0
    3. IDC Terminal:Phosphor Bronze, Tin Plating
    4. RJ45 Contact Life:1000 Times Min
    5. RJ45 Dimension:11.9*6.8mm
    Order information: More Required details & Better Price

    1:Goldpainted of Spring ?Goldpainted can choose from 6U" to 50 U"
    2: Quantity Quired?More quantities ,Better Price
    3. Which Kind ?CAT6A/CAT6/CAT5E/CAT3 FTP & UTP
    4. Any others---- CAT6A Keystone jack 180 degree----

    Features and benefits

    1. Available in Cat6, T568A/B wiring, meet or exceed TIA/EIA Cat6 requirements.

    2. Housing: high temperature thermoplastic

    3. Compact jack design, 8 positions and 8 conductors

    4. Contact: phosphor bronze, phosphor bronze with 6 to 50u” gold plate

    5. Accept 22-26AWG solid with a insulation diameter of 0.4-0.6 mm

    6. Easy to be terminated, low attenuation loss and high return loss

    7. High reliability and superior performance
