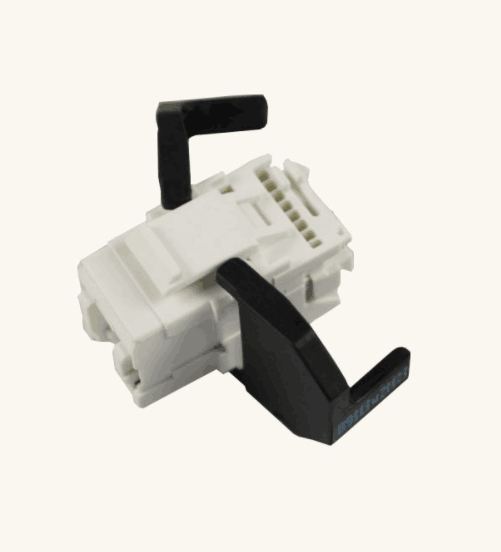

RJ45 3M UTP CAT6 Shielded Keystone Jack 180 Degree With Gold Plating

3M Keystone Jack Specifications:

• Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 /5Erequirements.
• Meet TIA/EIA TSB-40
• Meet ISO/IEC Generic Cabling Standard 11801
• Meet CENELEC Generic Cabling Standard EN50173
• Angle: 180 Degree
• Termination: Krone- 110- DUAL Type

3M Keystone Jack Electrical:

• According to UL 1863
• Current rating: 1.5 Amp Max.
• Voltage rating: 150 Volts
• Contact resistance: 20 m-ohm
• Insulation Resistance: 500M-ohm
• Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

3M Keystone Jack Materials:

• Housing: PC UL94V-0
• IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
• PCB: FR4 1.6mm(0.04") thickness, 2 layers
• Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.

Over 30 Years of Experience
Cixi Anshi Communication Equipment has been specializing in jacks and connectors since 1986. We offer you more than 200 specifications in 10 categories, including fiber-optic distribution trays and splice closures, drop wire connectors, Cat5E and Cat6E patch cables, internet connectors, and distribution boxes. About 60% of our products are exported to Southeast Asia, Europe, the Middle East, Africa and the US.

One New Product Every Month
Our six R&D staff members use advanced testing equipment from the US. They use computer software such as AutoCAD, Pro/E, 3D MAX and Photoshop. They also develop one new product every month to meet your requirements.

OEM/ODM Orders Accepted
Now, we have more than 100 staff members and 20 of them are technicians at our 4,800 sqm factory. We have two production lines dedicated to processing your OEM/ODM orders, thus, we produce $200,000 worth of components every month.

Three Sections to Control Quality
Following ISO 9001:2000 guidelines, our quality control department includes QC, QE and QA sections. QA staff members check the quality of all raw and processed materials, while QE personnel are responsible for the related documents. QC staff members handle your requests and quality statistics, and make the corresponding improvements. We use materials from South Korea, the US and Taiwan to ensure quality. You can have confidence in ordering our CE-approved products.
