    Low Insertion Single Mode Fiber Adapter Sc/upc - Fc/upc Simplex For Ftth System

    Ask Lasest Price
    Brand Name : ANSHI
    Model Number : AS-ADP-SC-FC
    Certification : ROHS, ISO9001
    Price : Negotiable
    Supply Ability : 500,000pcs/week
    • Product Details
    • Company Profile

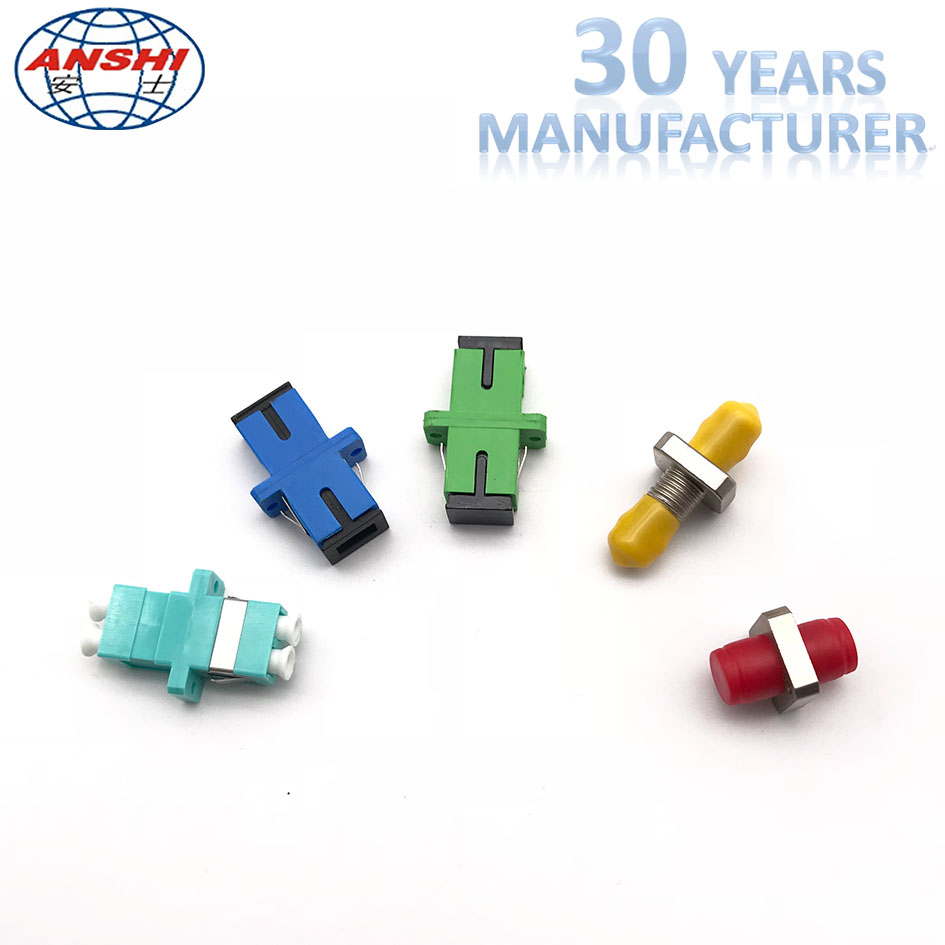

    Low Insertion Single Mode Fiber Adapter Sc/upc - Fc/upc Simplex For Ftth System


    LC Duplex Singlemode Multimode Optical Fiber Adaptors For Fiber Distribution Box


    Feature

    • Compact design
    • High precision alignment
    • Low insertion and return loss and back reflection
    • Choice of metal or plastic housing, phosphor bronze or ceramic split sleeves
    • Version: Singlemode and Multimode
    • Adaptor Type: Simplex / Duplex

    Application

    • Premise installations
    • Telecommunication networks
    • Metro networks
    • Local Area Networks (LANs)
    • Data processing networks
    • Instrumentation
    SC FIBER OPTIC ADAPTER
    ParameterUnitDescription
    Insertion lossdB≤ 0.2
    Return lossdBPC≥45 UPC≥50 APC≥60
    Mechanical endurance(500T)dB≤ 0.2
    ExchangeabilitydB≤ 0.2
    Operating Temperature°C-40~+75
    Storage Temperature°C-40~+85
    Relative Humidity%95
    ParameterUnitOptical Attenuator
    FixedVariable
    Operation wavelengthnm1310/15501200~1600
    Attenuation valuedB+/- 0.5(≤10 dB)0~3
    +/-1.0 >10 dB)
    Max. Optic input powermW500500
    Max. PDLdB≤0.1≤0.1
    Return lossdBUPC>50
    APC

    <60
