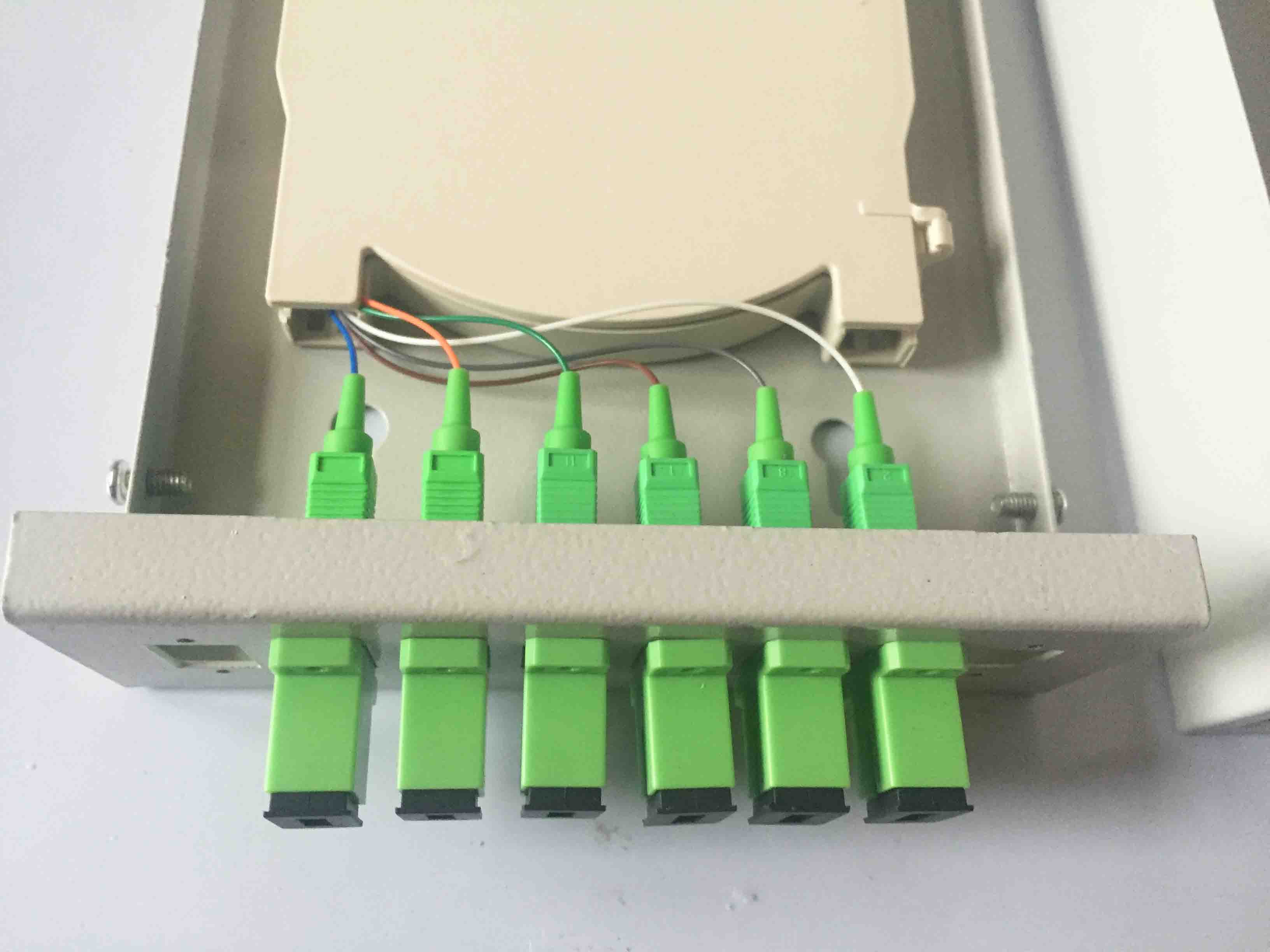

Fiber Optic Distribution Box 6 cores / fibers termination box SC/APC with adaptor and pigtails

It is FTTH mini optic terminal box, made of high quality plastic, small size, with plastic splice tray inside. It provides an economical way for terminating small optical fiber.

Features:

• ABS material used ensures the body strong and light.
• Design for indoor uses.
• Easy installations: Ready for wall mount – installation kits provided.
• Adapter slots used – No screws and tools needed for installing adapters.

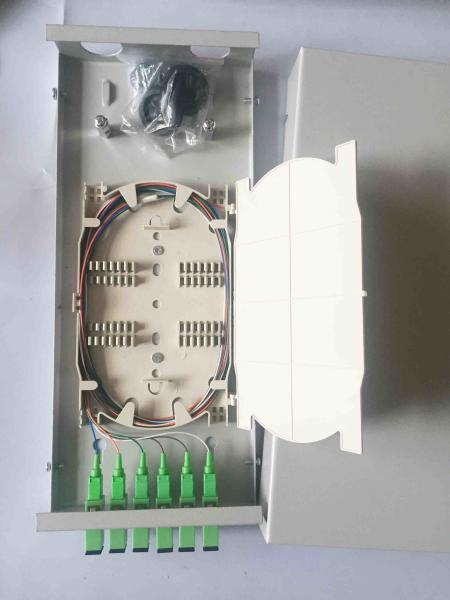

• Space saving: Double-layer design for easier installation and maintenances:
• Lower layer for splicing and over length fiber storage.
• Upper layer for adapters, cross-connecting and fiber distribution.
• Cable fixing units provided for fixing the outdoor optical cable.
• Accommodates both cable glands as well as tie-wraps
• Light weight, small size, easy installation
• The base and cover of the box adopts self-clip method, which is easy and convenient to open and close
• Can connect/reconnect to adapters more than 200 times
• Connector for FC, SC, ST
• Max. Capacity: fibers
• Dimension: : 300*130*45( L X W X H )
• Weight: 0.2kg

Environmental requirement

Working temperature : -40℃~+85℃
Relative humidity : ≤85% (+30℃)
Atmospheric pressure : 70Kpa~106Kpa

Main technical datasheet

Insertion loss : ≤0.3db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insertion and extraction : >1000 times

Applications:

---suitable for Pigtail, ribbon and bunch cable connectors distribution

---Used for wall-mounted and rack-mounted applications
