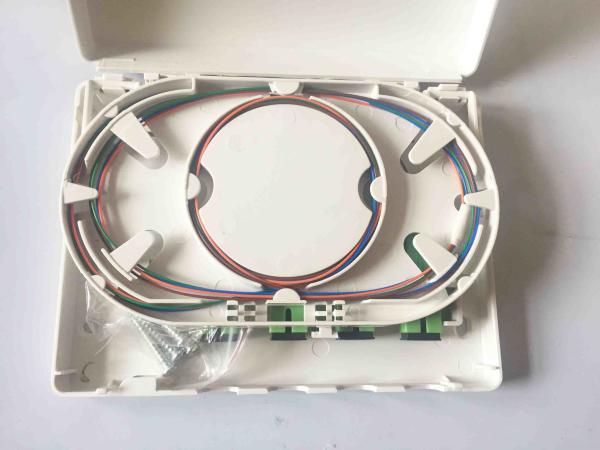

Fiber Optic Distribution Box 4 cores / fibers termination box SC/APC with adaptor and pigtails

It is FTTH mini optic terminal box , made of high quality plastic, small size, with plastic splice tray inside. It provides an economical way for terminating small optical fiber.

Features:

• ABS material used ensures the body strong and light.
• Design for indoor uses.
• Easy installations: Ready for wall mount – installation kits provided.
• Adapter slots used – No screws and tools needed for installing adapters.
• Space saving: Double-layer design for easier installation and maintenances:
• Lower layer for splicing and over length fiber storage.
• Upper layer for adapters, cross-connecting and fiber distribution.
• Cable fixing units provided for fixing the outdoor optical cable.
• Accommodates both cable glands as well as tie-wraps
• Light weight, small size, easy installation
• The base and cover of the box adopts self-clip method, which is easy and convenient to open and close
• Can connect/reconnect to adapters more than 200 times
• Connector for FC, SC, ST
• Max. Capacity: 4 fibers
• Dimension: 110*150*34( L X W X H )
• Weight: 0.2kg

Environmental requirement

Working temperature : -40℃~+85℃
Relative humidity : ≤85% (+30℃)
Atmospheric pressure : 70Kpa~106Kpa

Main technical datasheet

Insertion loss : ≤0.3db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insertion and extraction : >1000 times

Applications:

---suitable for Pigtail, ribbon and bunch cable connectors distribution

---Used for wall-mounted and rack-mounted applications
