312 core Wall Mount Domo Fiber optic Splice Closure FTTH IP68
Waterproof Fiber Optic Joint Closure
Description:

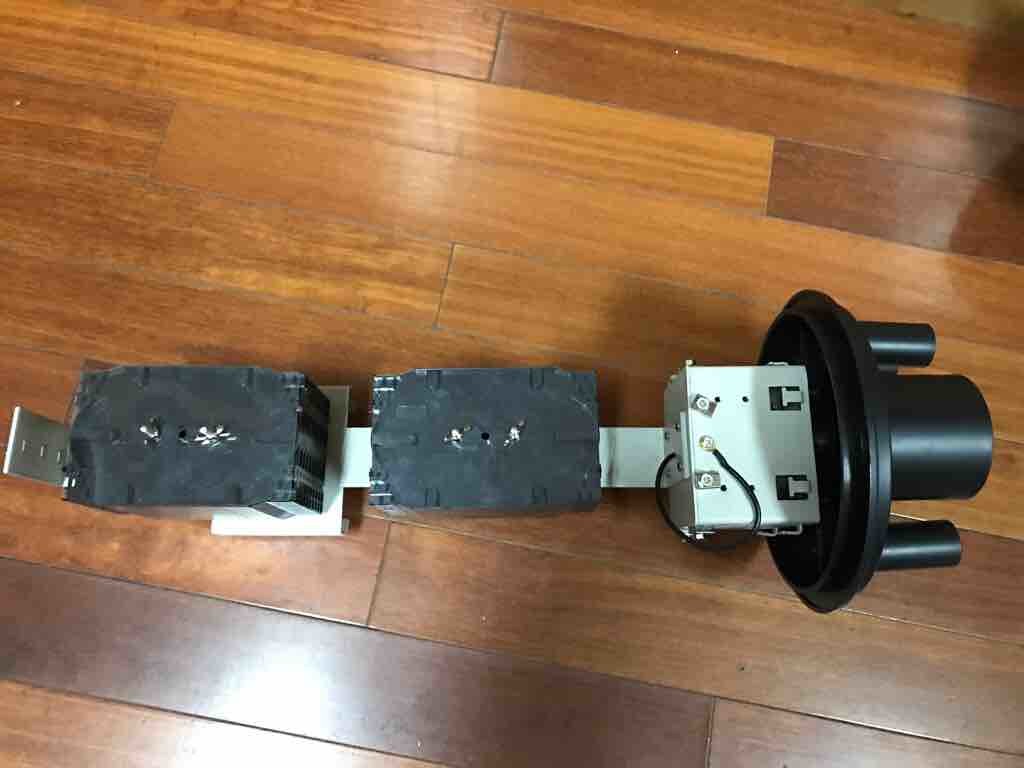

Fiber Optic Splice Closure (FOSC) is a member of dome series. The
function of the product is in the optical transmission link, to provide various types of fiber optic cable through,
branching, and related connecting protection,IP safety rate is IP68. This model has six small round ports and one large round
port. The sealing component is made from vulcanized rubber. The sealing method adopts screw pressure. This model is
suitable for different methods of branch connection,
including branching of uncut cables.It could be used for aerial,
polemounting, wallmounting and underground application. This model
is excellentin sealing performance, easy for installation, wide
application and is prior choice of fiber connection equipment.
Features:
1. Made from engineering plastic with high strength and
anti-corrosion.
2. Suitable for wall-mounting or pole mounting application
3. 1pcs of large round port for uncut cable and 4pcs of small round
port
4. Suitable for module type of PLC splitter with SC connector or LC
connector, etc
5. Suitable for SC or LC connect or customized
6. Sealing method: mechanical sealing type
Specification:
| Port | 1×2,1×4,1×8,1×16,1×32,1×64, 2×4,2×8,2×16,2×32 |
| Fiber Type | G652D, G657A |
| Package | Steel tube; ABS box |
| Input Fiber Type | 900µm Loose tube, 2.0mm, 3.0mm, 250µm Ribbon Fiber, Adapter |
| Output Fiber Type | 900µm Loose tube, 2.0mm, 3.0mm, 250µm Ribbon Fiber, Adapter |
| Pigtail Length | 0.5–2.0m, Adapter, Others |
Connector Type | FC/UPC, FC/APC, SC/UPC, SC/APC,ST/UPC, LC/UPC, LC/APC, None, Others |
Dimensions and Capability:
Dimensions ( L*W*H): 515mm*310mm
Maximum Capacity: Bundle – 24-288Cores
Cable Entrances: 1 in 6 out
Diameter of Cable: Φ5mm - Φ38mm.
NO. of trays: 1-12
Sealing Method:Mechanical
Operation conditions:
Temperatures: -40℃~+60℃
Humidity: ≤95% (at 40℃)
Air Pressure: 70kPa ~106kPa
