    Gas Discharge Tube MDF Main Distribution Frame Protection Unit Overvoltage Protection

    Ask Lasest Price
    Brand Name : ANSHI
    Model Number : AS-MDF-HW-U
    Certification : ROSH, ISO9001
    Price : Negotiable
    Supply Ability : 10000pcs/week
    • Product Details
    • Company Profile

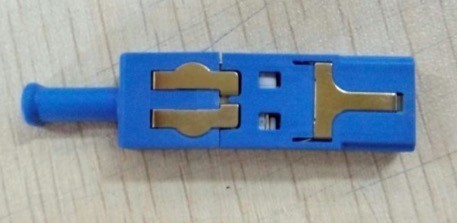

    Gas Discharge Tube MDF Main Distribution Frame Protection Unit Overvoltage Protection

    Gas Discharge Tube Protective Unit Over-voltage Protective unit

    1. Used to provide primary protection for exchange equipments and access equipment;
    2. Used with JPX658-FA8-239X series 10-pair cable side terminal block;
    3. Adopting PTCR to Provide protection function against overcurrents;
    4. When I=1A, action time<1.2S;
    5. Adopting gas discharge tube GDT to provide protection
    6. against overvoltages:
      • DC breakdown vloltage:380 - 550V
    7. • Impulse limiting voltage:<800V(1kV/μs)
    8. Compliant with ITU-T K.20(07/2003) Resistibility of telecommunication equipment installed in a telecommunications centre to overvoltages and overcurrents.
