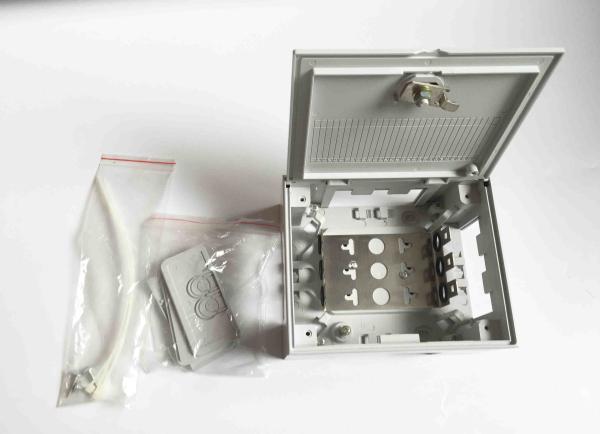

Cable Distribution Box 30 pairs Indoor distribution box for 10 pairs krone module LSA-PLUS

Features:

1) Can be mounted with LSA-PLUS 10-pair disconection or connection module

2) Not waterproof box, suitable for indoor wire distribution

3) Material of house: ABS fire-resistant

4) Including stainless steel mounting frame, but modules to be ordered separately

5) Including 1 back mount frame(3ways)

6) Compatible with Krone modules

10 Pairs LSA-PLUS Krone Disconnetion Module

Features:

1) Temperature: -5 - 40°C
2) Relative humidity: <85% (+30°C)
3) Atmospheric pressure: 70 106KPa
4) Material: stainless steel and cuprum, cuprum gold plating over nickel
5) Performance of anti-burn: PPT (UL94V-0) or anti-burn ABS (UL94V-0),
combustibility of GB/T 5169.7-1985 standard
6) Construction features: adopts modularization design, elegant
outlook and high endurance
7) Pulling-out force: tin bronze and silver plating (20 - 40uinch), pulling-out
force not less than 25N
8) Intermediate resistance between reed terminators: no more than 7m
(ohm between intermediate reeds under standard examination
condition)
9) Intermediate resistance: no more than 3m ohm under standard
examination condition
10) Performance impedance: 120Ω (balance)
11) Work rate: 2mb/s
12) Insulation resistance: 1,000mΩ / 500V (DC)
13) Resistance to voltage: no breakdown or arc for 1 minute under 1kV (DC)
14) Crosstalk ratio: ≥60dB (50kHz - 210MHz)
15) Plug-in loss: ≤0.4dB (50kHz - 210MHz)
16) Back wave loss: ≥18dB (50kHz - 210MHz)
17) Life: 200 cycles

Over 30 Years of Experience
Cixi Anshi Communication Equipment has been specializing in jacks and connectors since 1986. We offer you more than 200 specifications in 10 categories, including fiber-optic distribution trays and splice closures, drop wire connectors, Cat5E and Cat6E patch cables, internet connectors, and distribution boxes. About 60% of our products are exported to Southeast Asia, Europe, the Middle East, Africa and the US.

One New Product Every Month
Our six R&D staff members use advanced testing equipment from the US. They use computer software such as AutoCAD, Pro/E, 3D MAX and Photoshop. They also develop one new product every month to meet your requirements.

OEM/ODM Orders Accepted
Now, we have more than 100 staff members and 20 of them are technicians at our 4,800 sqm factory. We have two production lines dedicated to processing your OEM/ODM orders, thus, we produce $200,000 worth of components every month.

Three Sections to Control Quality
Following ISO 9001:2000 guidelines, our quality control department includes QC, QE and QA sections. QA staff members check the quality of all raw and processed materials, while QE personnel are responsible for the related documents. QC staff members handle your requests and quality statistics, and make the corresponding improvements. We use materials from South Korea, the US and Taiwan to ensure quality. You can have confidence in ordering our CE-approved products.

Contact Us Today
Call us today for more information.
